gcad
Parametric CAD, one operation per line

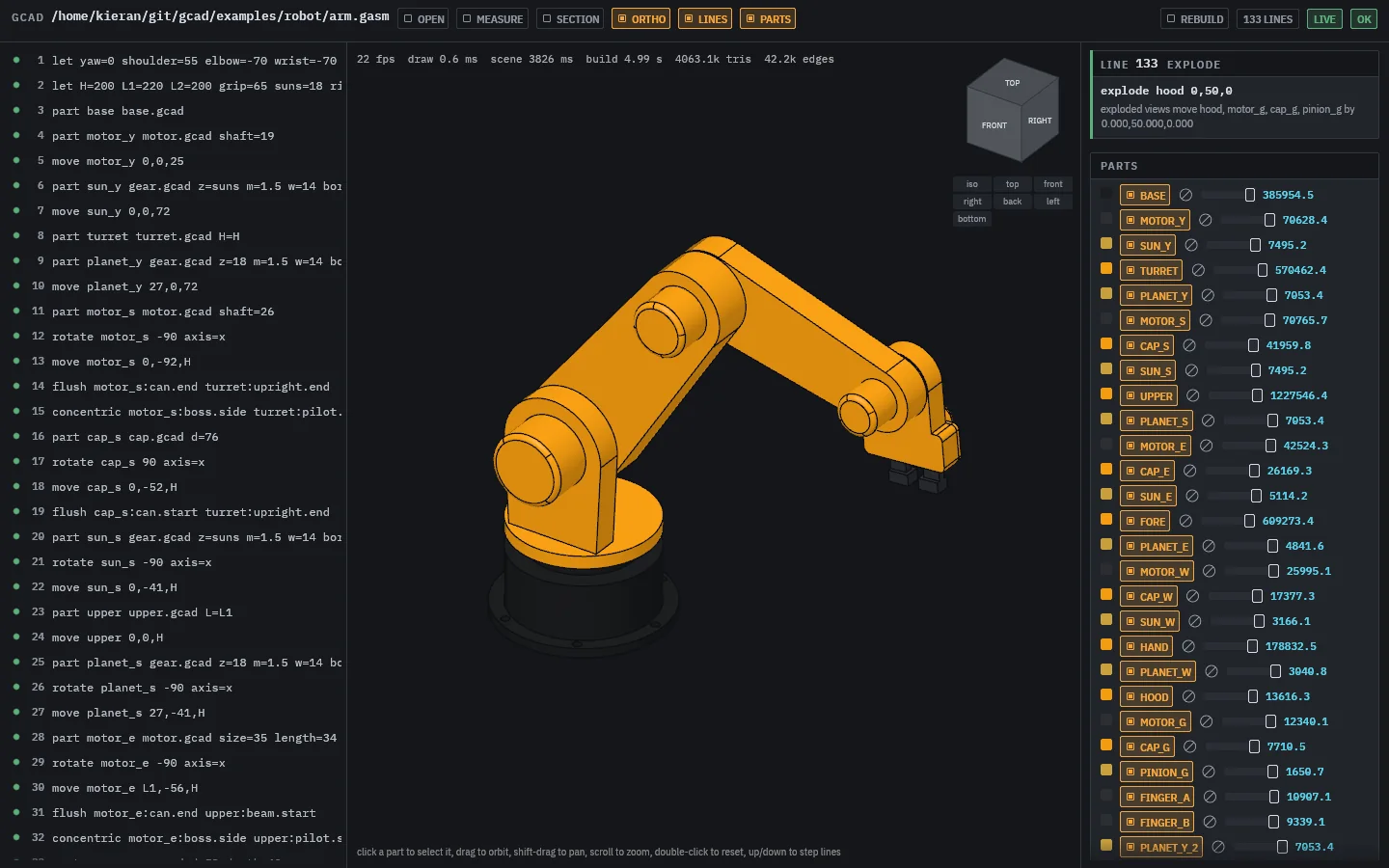

A part is a text file read like G-code: sketch, extrude, hole, fillet, one operation to a line. Assemblies place the parts with mates and joints, and the viewer rebuilds the model every time you save.
- Latest
- 0.3.1
- Released
- 12 Oct 2026
- Licence
- GPL-3.0-or-later
What it does
Simulation on the GPU
Torque, static, thermal, modal and buckling studies, and air flow by a lattice Boltzmann solver: 21 million cells around a robot arm in about two minutes.
Out to the shop
Exports STEP, STL, OBJ, 3MF, SVG drawings with section views, and a bill of materials. Built in Rust on the monstertruck B-rep kernel.
Written for agents too
Every line reports what it did, so a coding agent can write a part, check it and fix it without looking at the screen.
Works with
STEPSTLOBJ3MFSVG
Opens
.gcad.gasm.gsim
Drop one of these on the Bench Suite window and it opens here.
